Charactristic

• HDMI 1.4 support: 4K x 2K@30Hz 、 1080P@120Hz 、1080P 3D@60Hz

• Deep Color supports 48/36/30/24 bit

• External power supply and aviation type spiral power supply interface are adopted to ensure the stability of power supply

• Support EDID rewritable learning and EDID adaptive function, better adapt to diversified display devices on site, and improve compatibility

• Radio and television level switching chip, with higher integration

• Support any HDMI display to view any HDMI signal source at any time

• Support simultaneous display of any signal source on multiple displays

• Open control code, supporting self-development

• Two key control mode makes equipment control more simple and effective, and supports 1-way input+N-way output image switching

• Support fast channel closing

• Special blue ray button

• Visualization button, through which the blue light indicator can be used to visualize the status of input and output channels

• Support 4K 30HZ input and output

Technology

1. Name

   HDMI immobilization matrix

2. Support video resolution

   480i, 576i, 480p, 576p, 720p ,1080i, 1080p@24/30/50/60/120Hz, 4K@30Hz, 1080P3D@60Hz

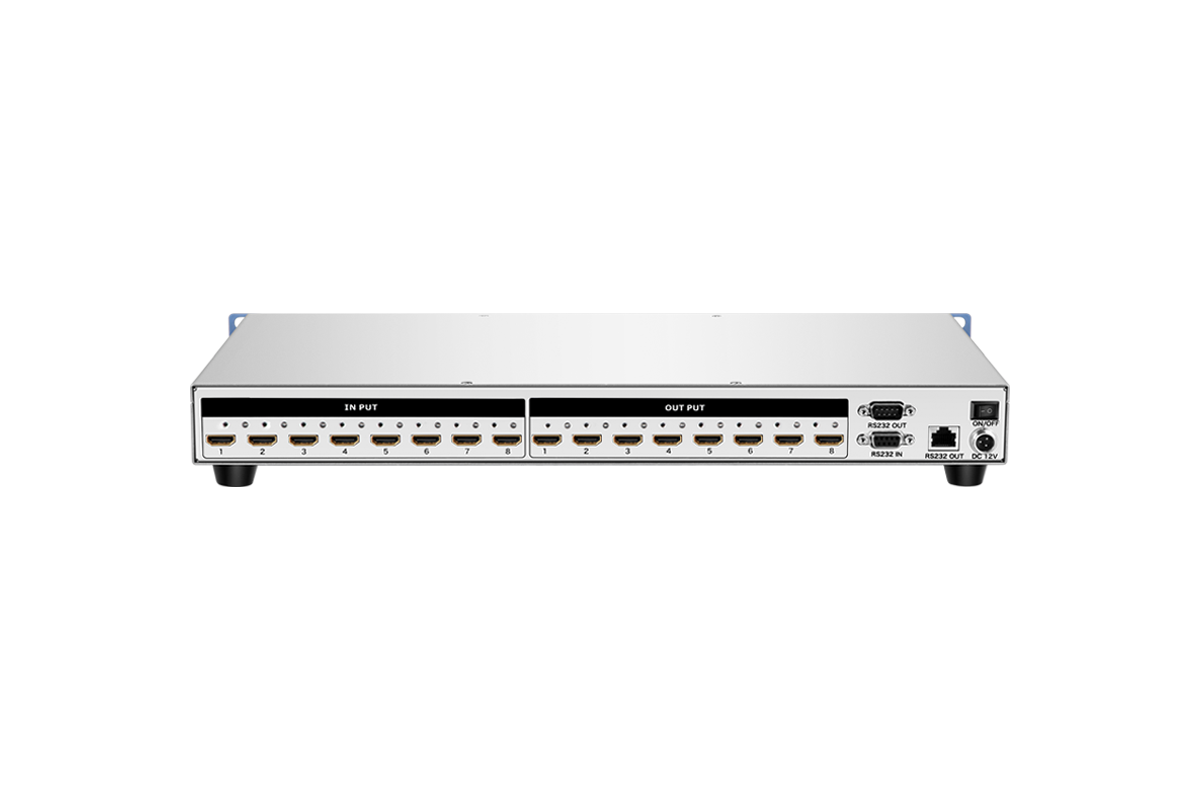

3. Input port

   8×HDMI

4. Output port

   8×HDMI

5. Equipment height

   1U

6. Control interface

   1 x RS-232 IN、1 x RS-232 OUT、1 x RJ-45

7. Protocol Standards

   Support HDMI1.4a, EDID management and rewritability, and HDCP resolution

8. Color space

   Support RGB 444, YUV444, YUV422 color space, and support x.v.Color extended color gamut standard

9. Electrostatic protection

   Human body discharge mode: ± 8kV (air gap discharge) , ± 4kV (contact discharge)

10. Control mode

    Key, RS232, WEB, APP

Routine

1. Power Supply

   DC:12 V3A

2. Input voltage

   Power supply 100VAC~260VAC, 50/60 Hz

3. Size

   438×250×45（mm）

4. Weight

   5Kg

5. Working temperature

   0 ºC~40 ºC/32 ºF~104 ºF

6. Storage temperature

   −20 ºC~60 ºC/−4 ºF~140 ºF
