Charactristic

• Audio and video signals support Ethernet port for transmission

• Use 10GbE network switch to route video and audio and control signals

• Fast and seamless HDMI signal conversion, resolution support 4K60 (8BIT 4:4:4), and broadcast level 4K60 (10BIT 4:2:2)

• Support HDMI2.0a, HDCP2.2

• Support embedded audio, analog audio, multi-channel PCM audio mixed stereo, bidirectional IR, RS-232, etc

• The output terminal has video scaling function, and supports multiple resolution output from VGA to 4K60

• With TV wall splicing, picture in picture, picture synthesis and user-defined layout functions

• CAT7 shielded cable can transmit up to 100 meters

• The interface machine supports node applications such as point to point, point to many, many to point, and many to many

• Support RS232 routing function

• When the input resolution is 4K60, the switch data bandwidth is about 8Gbps, and when the input resolution is 1080P60, it is about 3.4Gbps

• Support independent audio input/output and routing functions

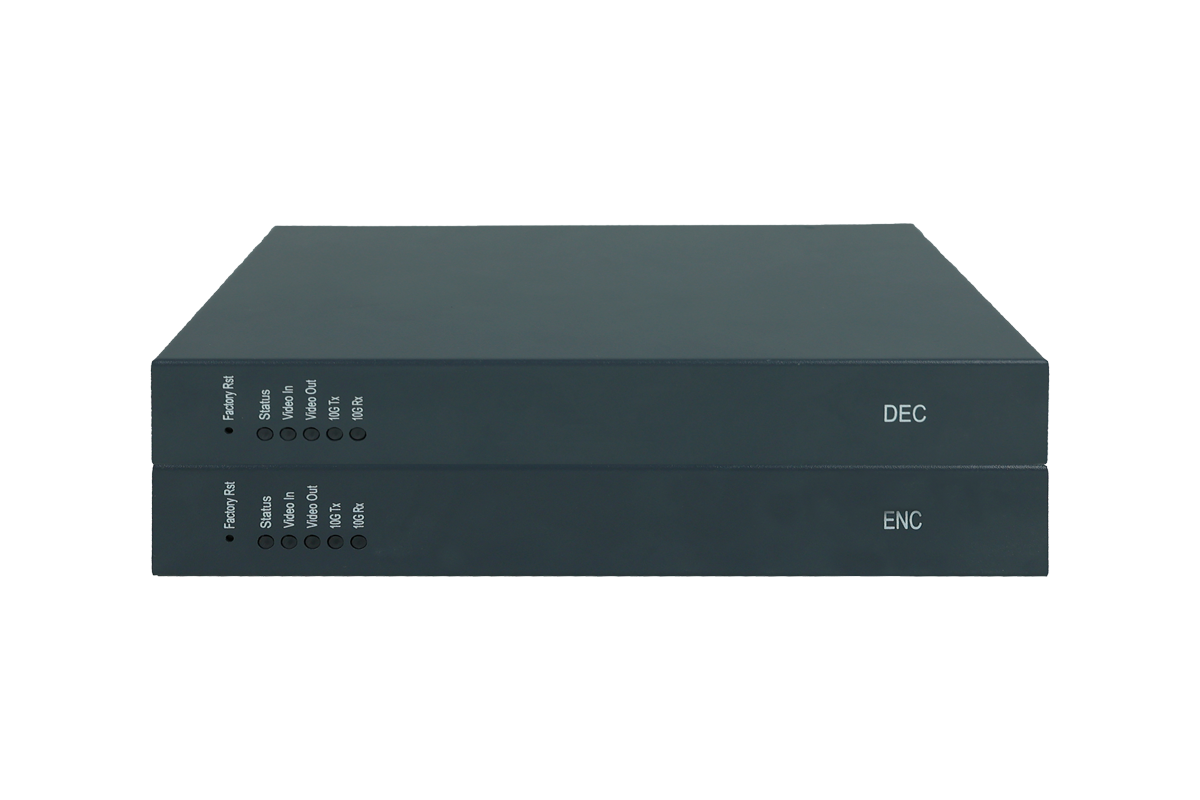

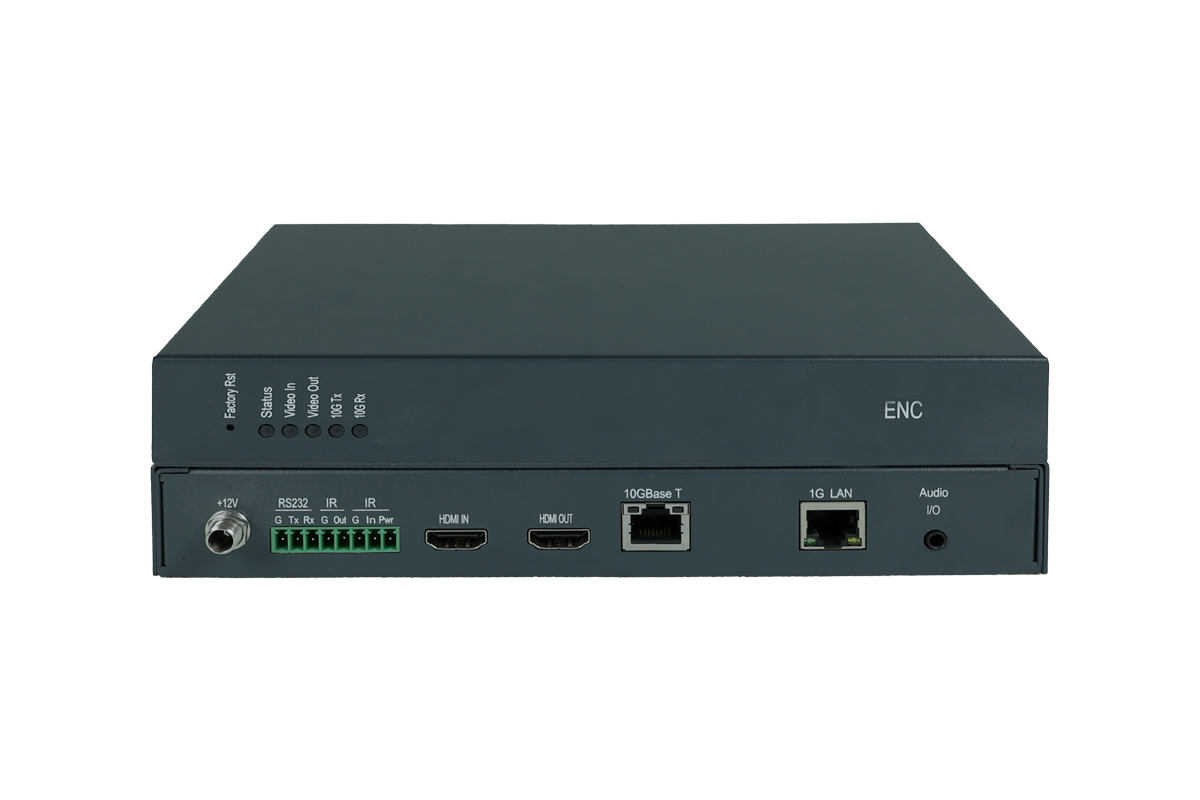

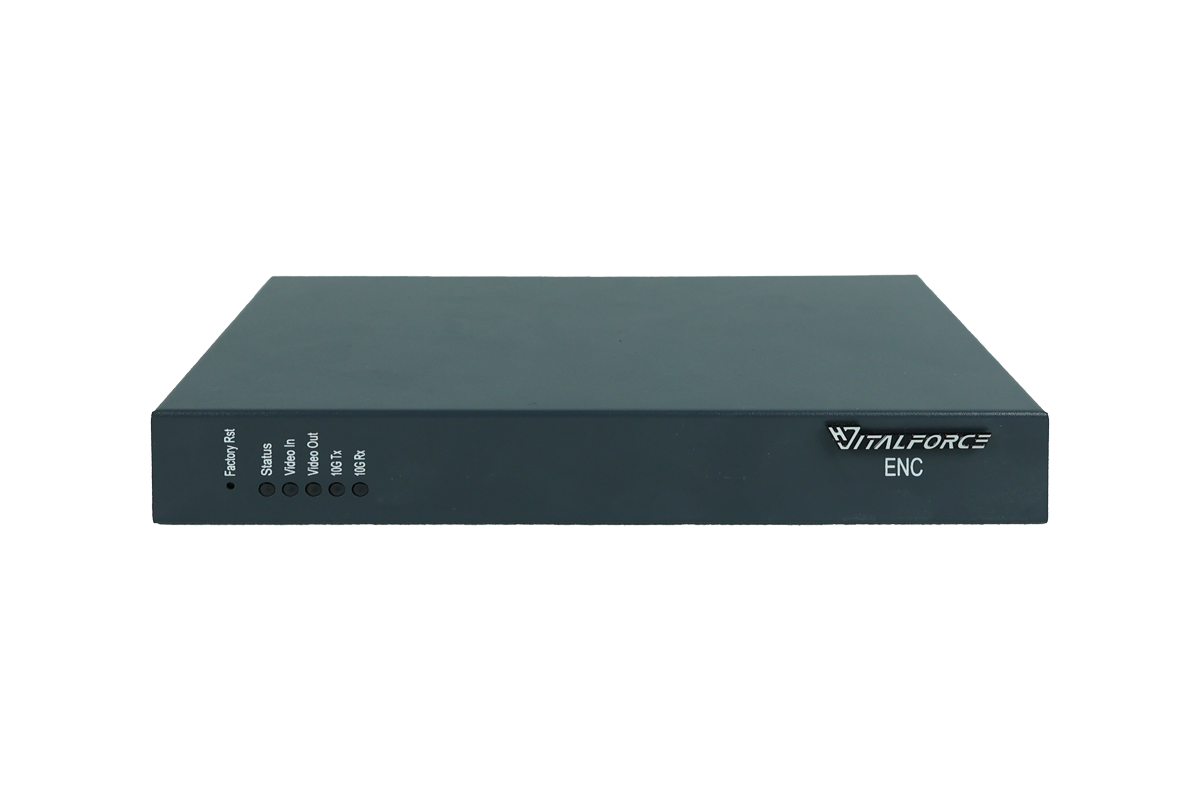

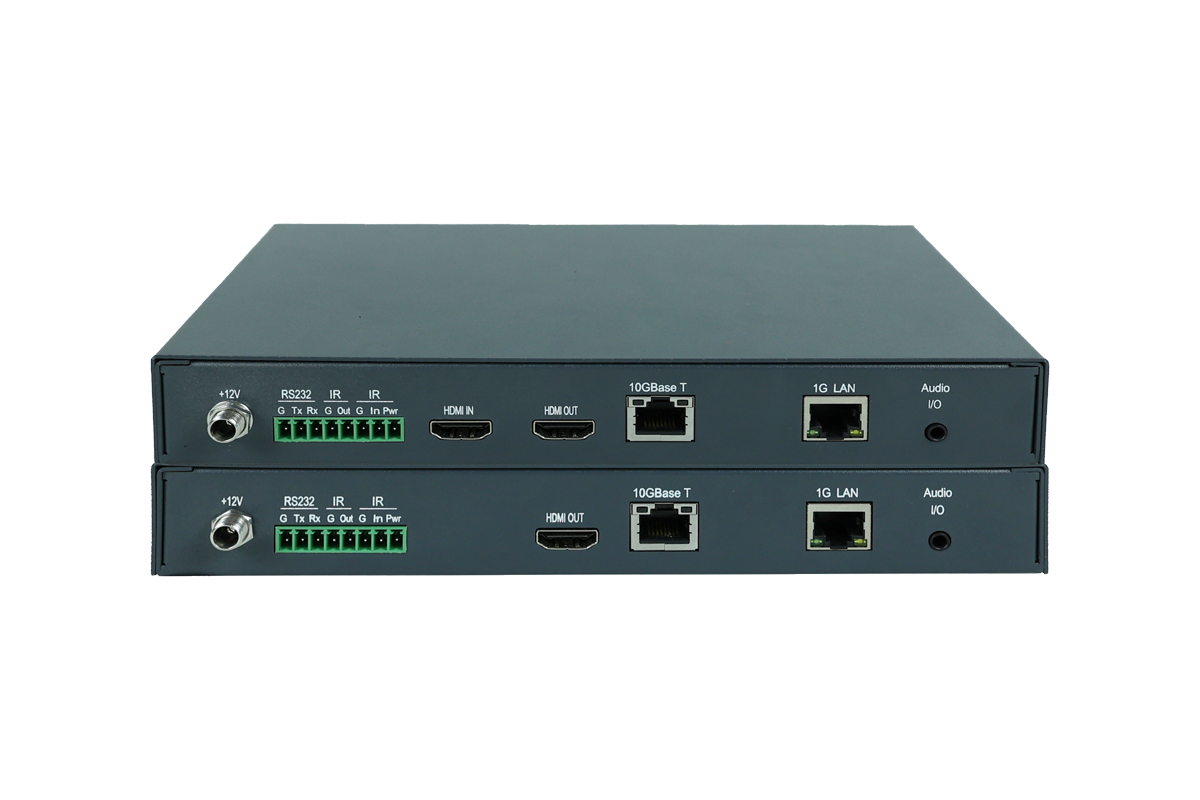

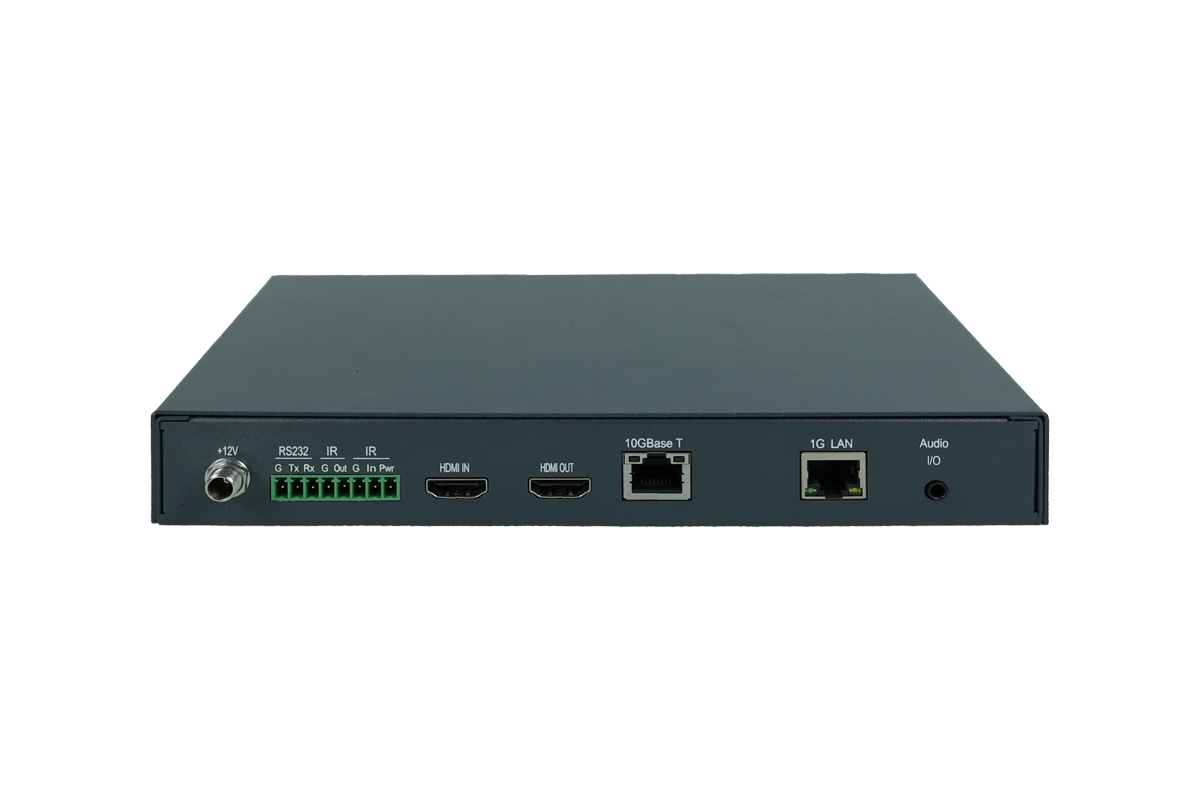

Interface

1. HDMI interface

   TypeA V2.0,HDCP V2.2

2. Embed Audio

   Support HDMI embedded LPCM audio, up to 24 bit 192kHz sampling frequency. Support embedded HBR audio formats, such as Dolby TRUE HD and DTS-HD Master Audio

3. External Audio

   3.5MM dual channel stereo audio input or output

4. IR control

   3pin Phoenix terminal supports bidirectional IR transmission, 1 IR input and 1 IR output

5. RS-232 control

   The 3-pin Phoenix connector supports two-way RS-232 transmission, up to 115200 baud

6. 10Gb and 1Gb ports

   Shielded RJ45 and LED indicator

characteristic

1. Maximum resolution support

   4096×2160@60Hz 4：4：4

2. Video signal transmission delay (point-to-point mode)

   Max. 1ms

3. Switching delay

   Maximum 2 frames

4. Switch requirements

   10Gb bandwidth, no blocking, Layer 2 IGMP

5. Number of input and output ports supported

   Only limited by the number of switch ports, cascaded

6. Recommended cable

   CAT7

7. Transmission distance

   CAT7 100M

Operation

1. Matrix exchange mode

   Any input node is switched to the output node through full routing. The size of the matrix is determined by the size and scalability of the switch

2. Video wall splicing mode

   Support splicing of 64 display devices at most

3. Point to point mode

   Support point-to-point signal expansion, and the maximum distance of CAT7 shielded network cable can reach 100 meters

4. Screen segmentation mode

   Support independent screen display of 32 images

Routine

1. Power Supply

   DC12V2A

2. Power waste

   The maximum input node is 8W, and the maximum output node is 8.5W

3. Adapter

   AC input 100-240V, DC output 12V/2A

4. Structure

   Ferruginous

5. Size

   220 mm x 136 mm x 32mm

6. Weight

   About 0.8KG
