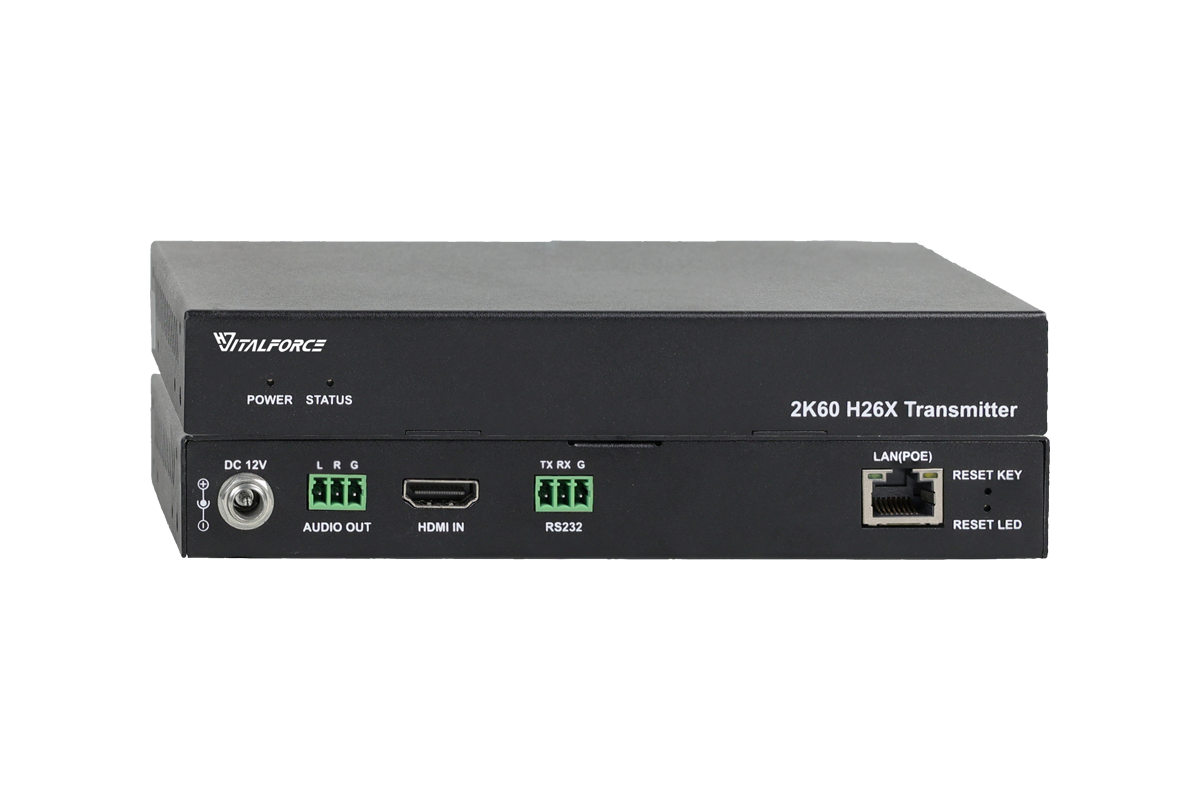

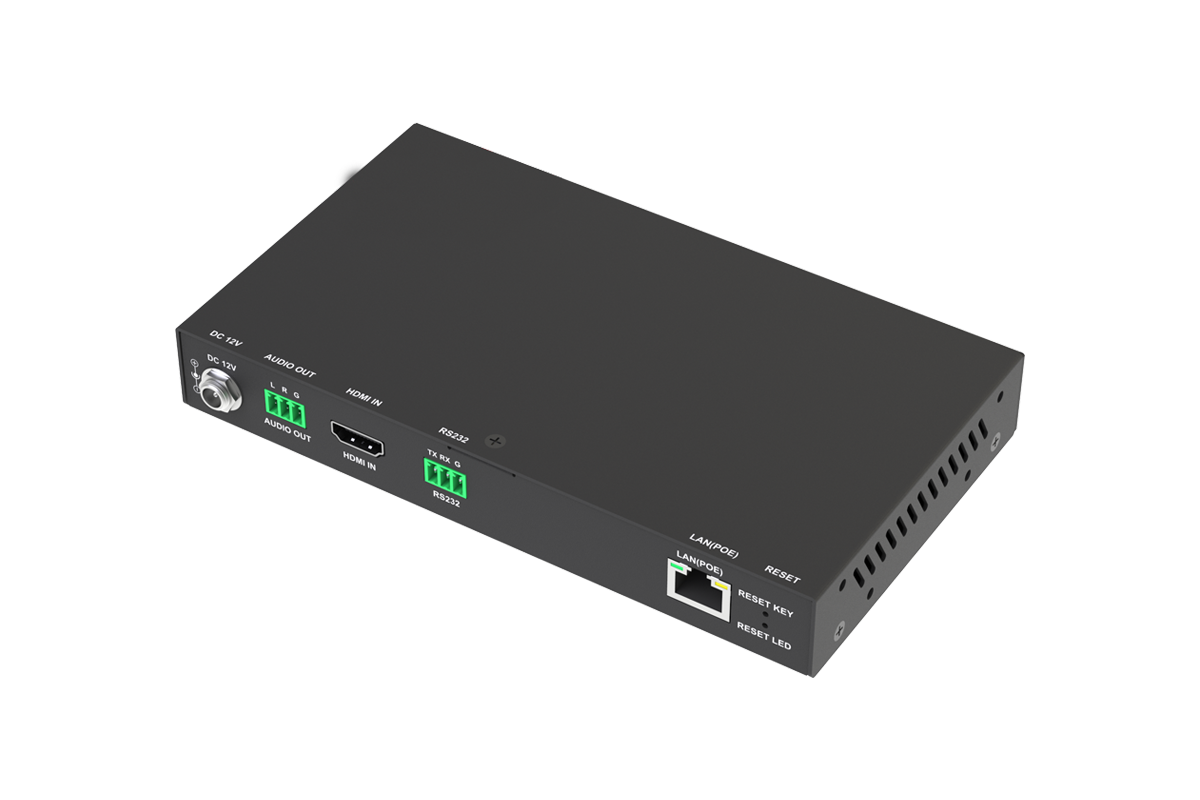

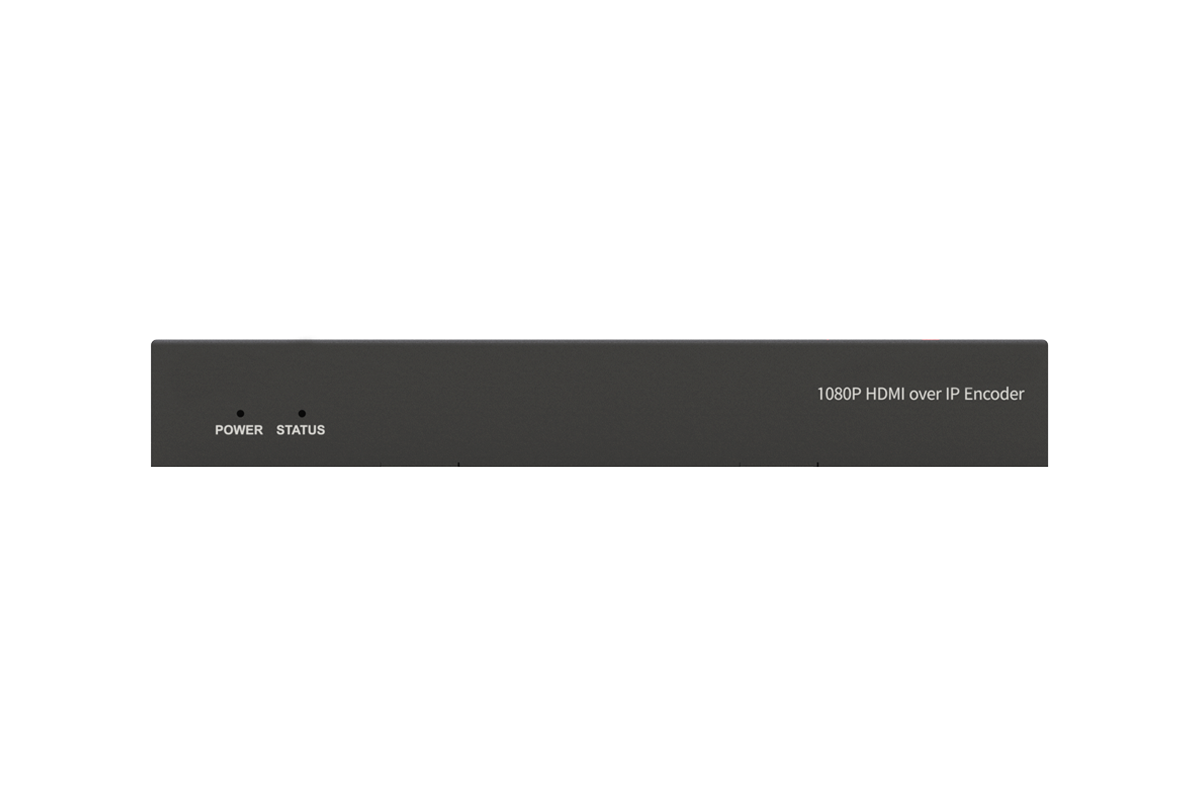

Charactristic

• Transmission of HDMI signal through IP network

• Encoder supports up to 1920 x 1080@60Hz Resolution of

• Two IP code streams can be output

• Support up to 16 x 16 TV walls

• Support audio split output

• It supports the control of the display terminal on and off through CEC

• The coding rate is adjustable and supports up to 30mbps

• Support seamless switching

• Support h.265, TCP / IP, Telnet, UDP, IGMP and other communication protocols

Video technique

1. Video input port

   1 x HDMI(code)，1 x LAN(decode)

2. Video input signal

   HDMI 1.3，HDCP 1.4

3. Input resolution

   1080P@60Hz

4. Output resolution

   Main code stream：480P@60Hz ~ 1920 x 1080@60Hz Small code stream：352 x 288@15Hz, 480P@15Hz

5. Coding rate

   Up to 30mbps, adjustable

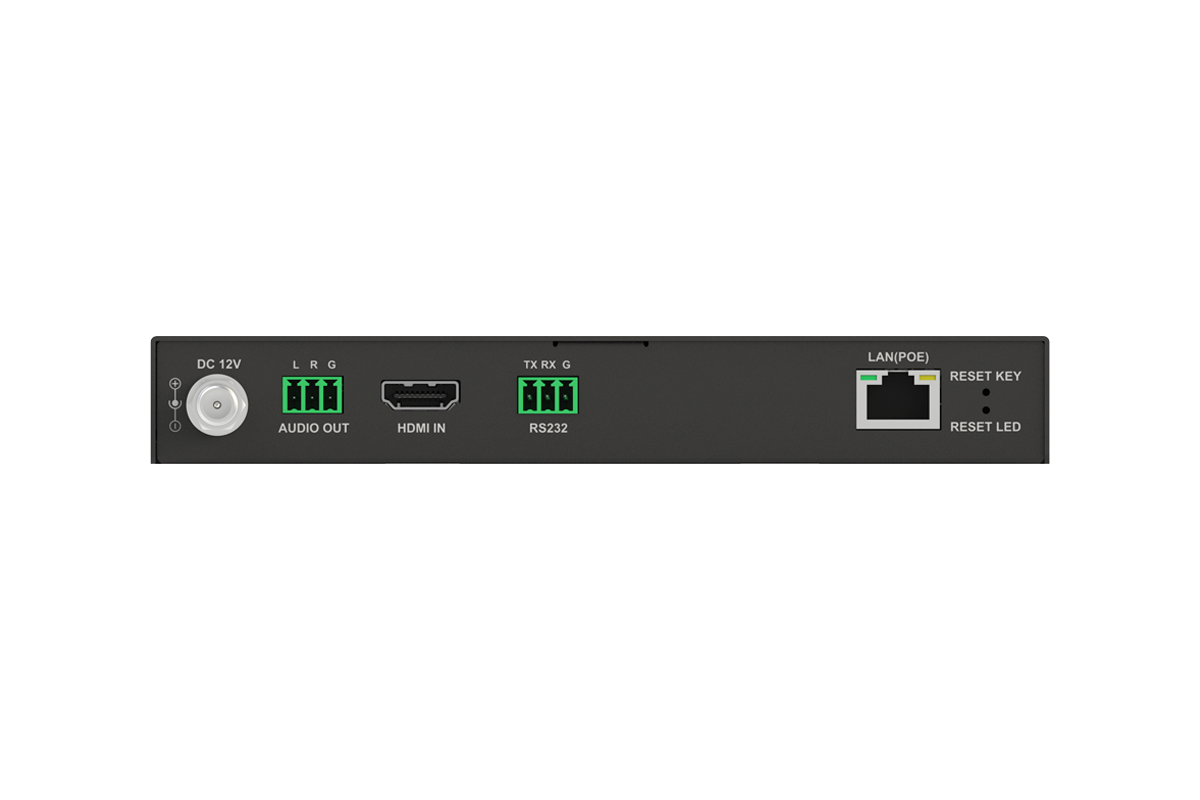

6. Output video port

   1 x LAN

7. Output video type

   H.265/MPEG-4 AVC

8. Video impedance

   100Ω

9. Input DDC signal

   5V p-p（TTL）

10. End-to-end delay

    Up to 30mbps, adjustable：60ms

Audio technology

1. Input audio port

   1 x HDMI(code)，1 x LAN(decode)

2. Input audio signal

   LPCM 2.0

3. Output audio port

   1 x Phoenix terminal, 1 x LAN (coding); 1 x HDMI (decode)

4. Output audio signal

   LPCM 2.0

5. Control mode

   VDirector（iPad），VisualDMS（Windows）

General parameters

1. Operating temperature

   0 ~ + 45°C (32 ~ + 113 °F), 10% ~ 90%

2. Storage temperature

   -20 ~ +70°C (-4 ~ +158 °F), 10% ~ 90%

3. Electrostatic protection

   ±8kV (Air gap discharge)/±4kV (Contact discharge)

4. Power Supply

   12V 1A DC

5. Max power consumption

   6W

6. Product size (W x H x D)

   175 mm x 25 mm x 100.2 mm

7. Net weight

   0.60kg
