Charactristic

• HDMI V1. 4 support: 4K x 2K@30Hz , 1080P@120Hz , and 1080p 3D@60Hz

• Deep color supports 48 / 36 / 30 / 24 bit

• Support lpcm 7.1ch, Dolby true HD, Dolby Digital + and DTS-HD master Audio transmission

• Support the simultaneous display of any signal source on multiple displays

• Support any HDMI display to view any HDMI signal source at any time

• 4 input ports support independent EDID

• Support RS-232, remote control, panel control, web and app control

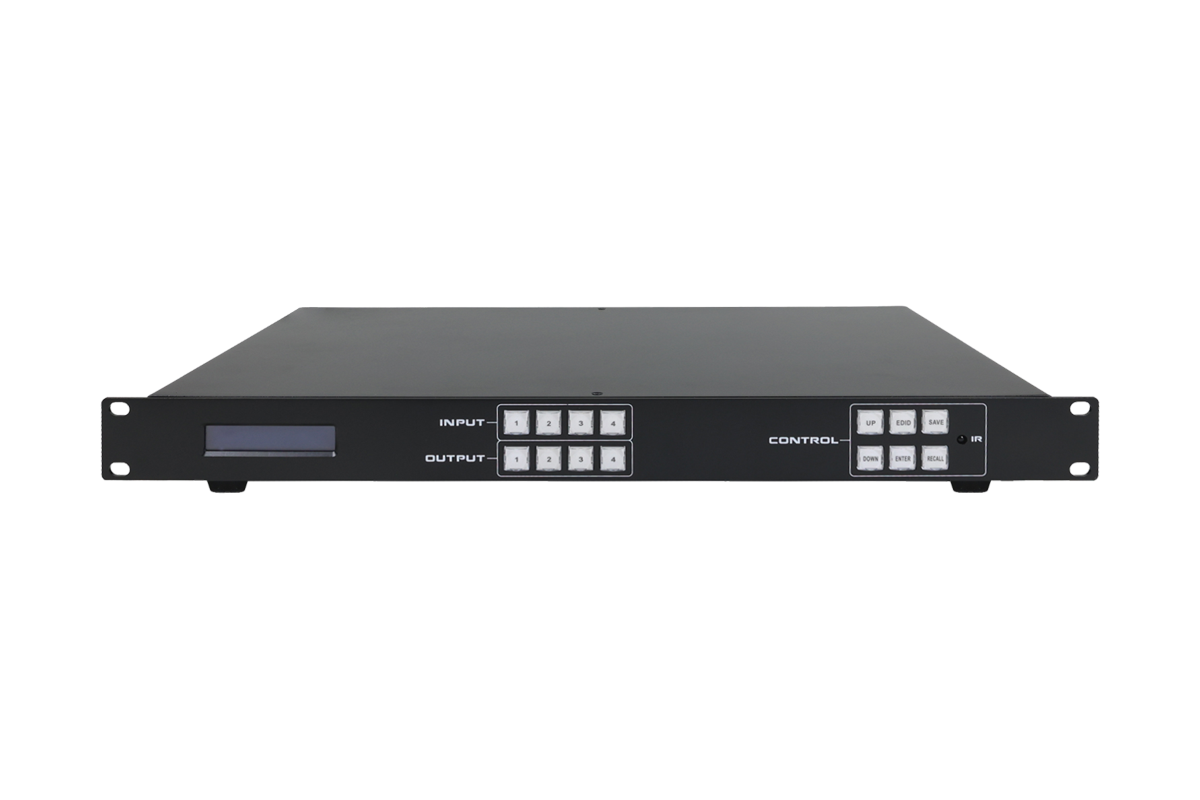

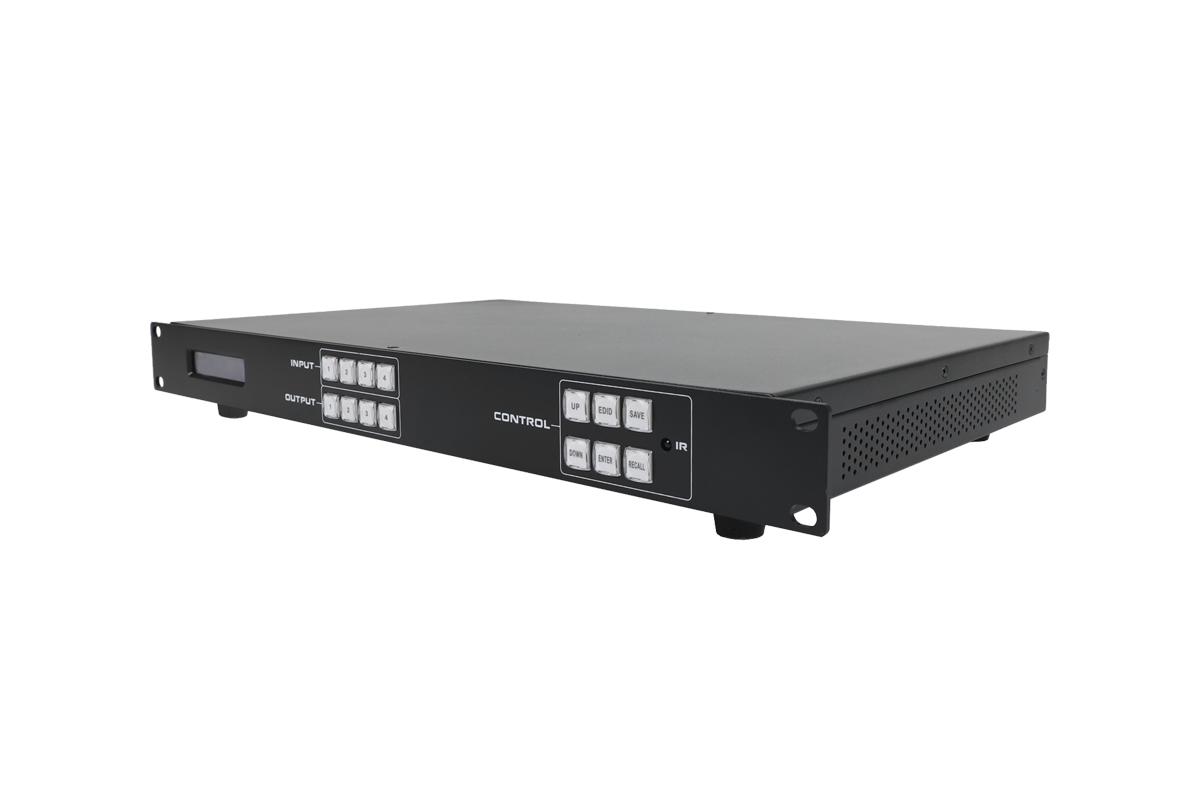

• The front panel LCD screen feeds back the real-time status

• Aviation spiral power supply interface, which guarantees the stability of power supply

• Special buttons for radio and television are adopted, with good touch

Technology

1. Name

   HDMI immobilization matrix

2. Support video resolution

   480i,576i,480p,576p,720p,1080i,1080p@24/ 30/50/60Hz,1080P3D@60Hz，4K@30Hz

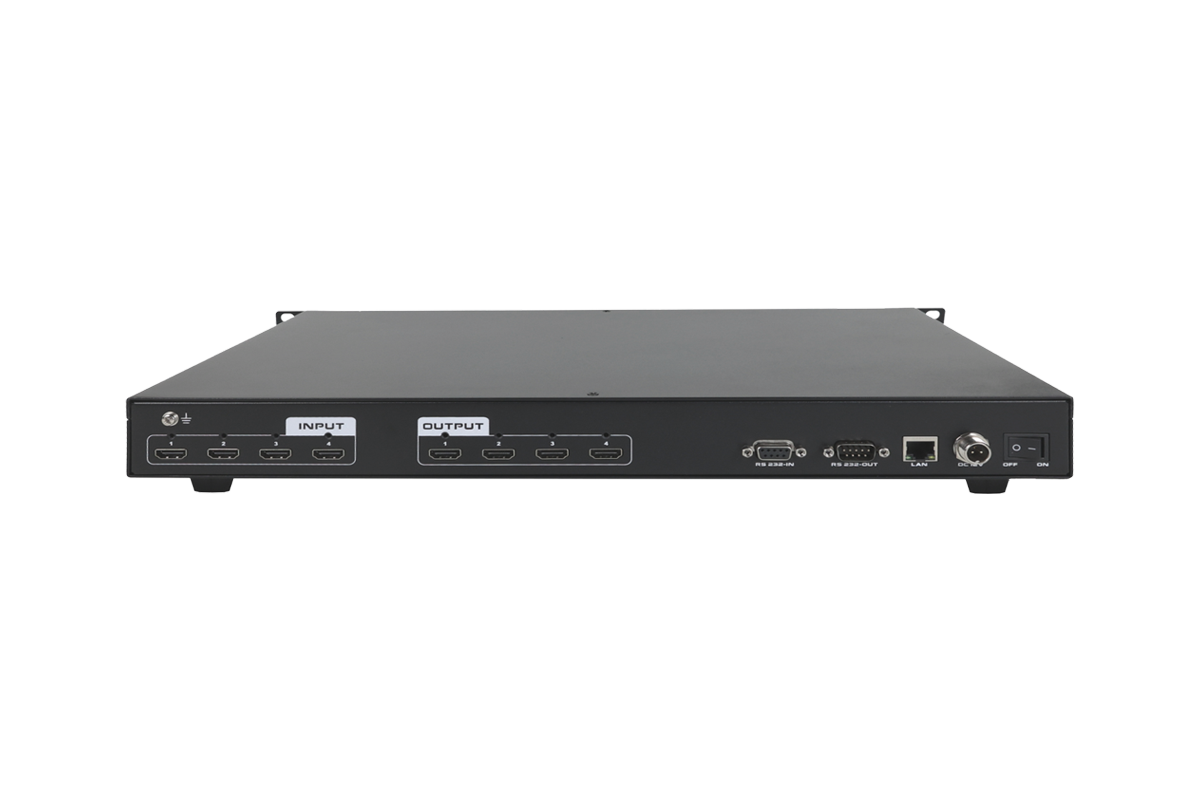

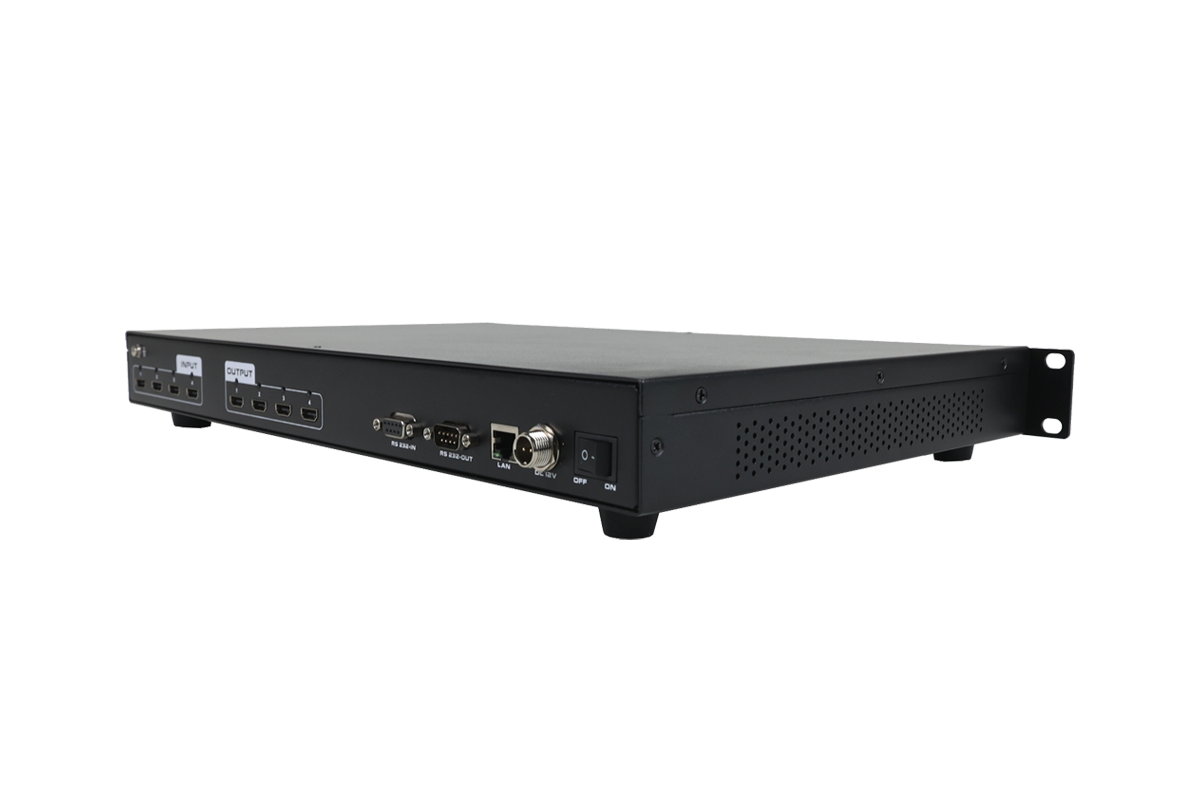

3. Input port

   4 x HDMI,1 x RS-232 IN,1 x RS-232 OUT,1 x RJ-45

4. Output port

   4 x HDMI

5. Electrostatic protection

   ± 8kv(Air gap discharge)±4kv(Contact discharge)

6. Control

   Front key，RS232，LAN Equal control mode

7. Power Supply

   AC:100V-240V 50/60Hz DC:12V2A

8. Input voltage

   Power Supply 100VAC ~ 260VAC，50/60 Hz

Routine

1. Power waste

   12W（maximum）

2. Size

   482 mm(W) x 288 mm(D) x 44 mm(H)

3. Weight

   2kg

4. Working temperature

   0°C ~ 40°C/32°F ~ 104°F

5. Storage temperature

   - 20°C ~ 60°C/ - 4°F ~ 140°F
