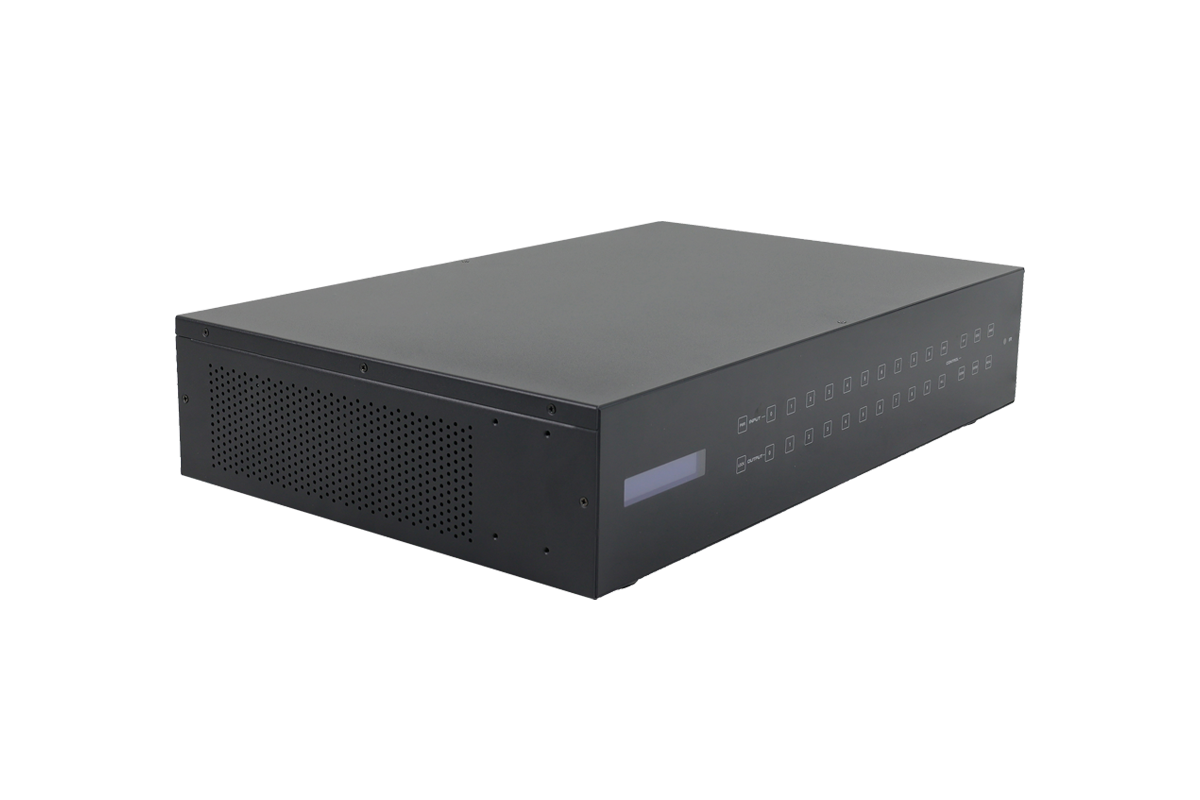

Charactristic

• It supports 16-channel HDMI input and 16-channel HDMI output. The device supports HDMI 1.3 protocol version

• Maximum support per channel 1920x1080@60Hz resolving power

• Support 48 / 36 / 30 / 24 bit, and enhance the color depth of the signal through the HDMI Jack

• Support synchronous switching of embedded audio and audio and video signals

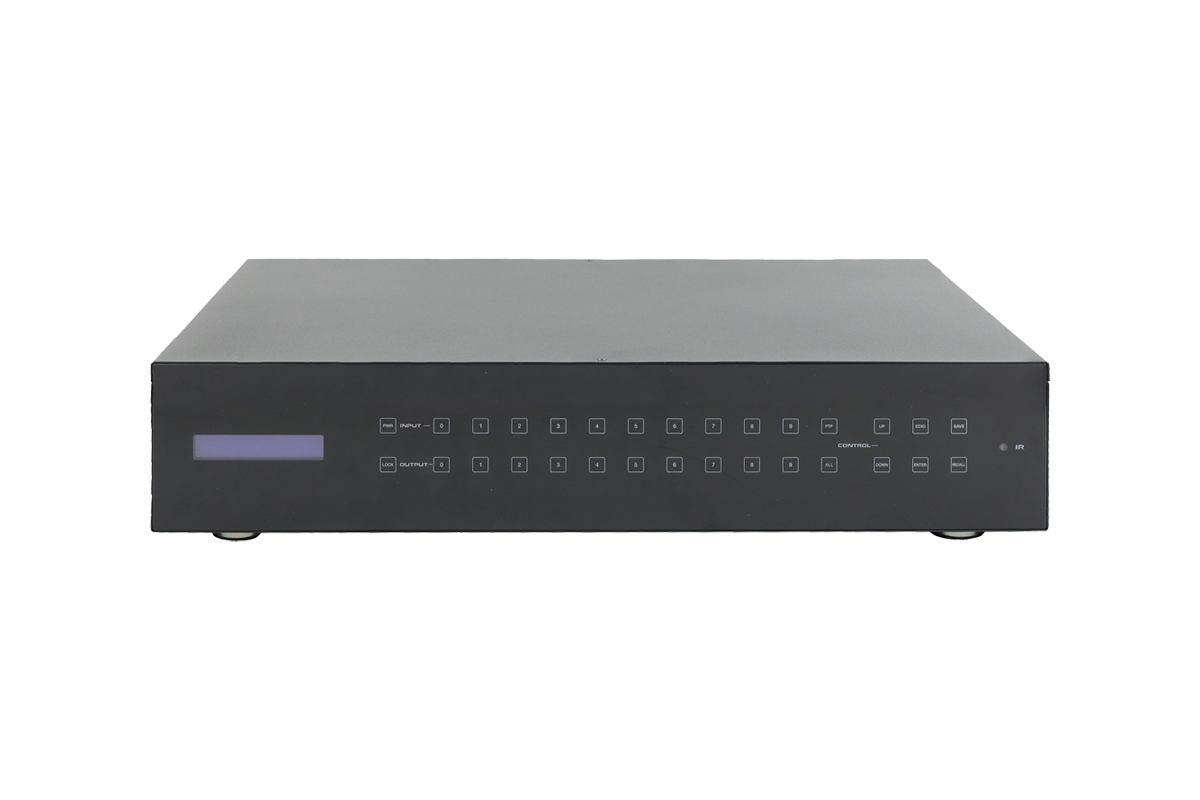

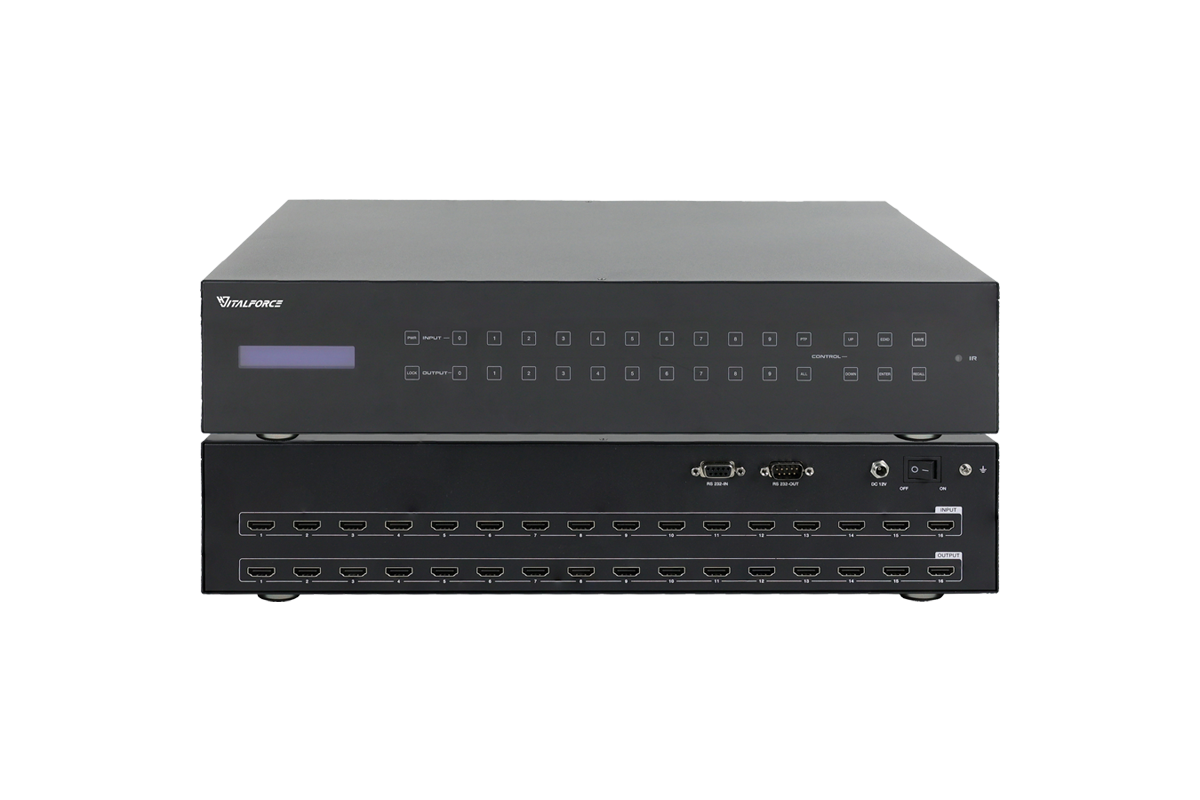

• Support the front panel LCD display, which can display the matrix signal switching status and system configuration in real time

• Support visual touch keys, RS-232 and remote control

• Support HDCP for each input, genuine Blu ray DVD, set-top box, etc Dense HD signal source equipment

Technology

1. Name

   HDMI immobilization matrix

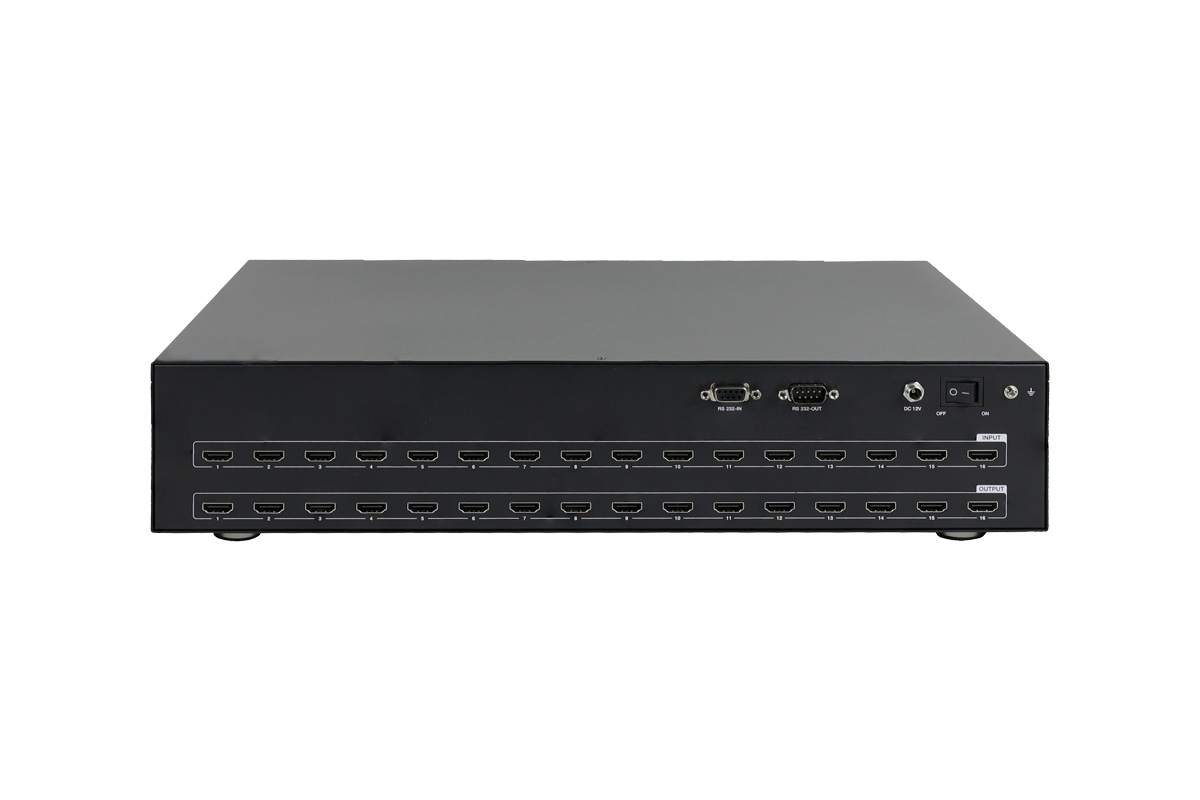

2. Input port

   16 x HDMI

3. Output port

   16 x HDMI

4. Resolving power

   480i，576i，480p，576p，1080i， 1080p@24/30/50/60Hz

5. Control port

   1xRS-232 IN、1xRS-232 OUT、1xIR

6. Protocol standard

   HDMI 1.3，HDMI 1.4

7. Control mode

   Visual touch button, RS232, IR remote control

8. Interface bandwidth

   13.5Gbps

9. Serial control interface

   RS-232, 9-pin female and male D-type interface

10. Serial control port structure

    9-pin female D-type interface：2=TX，3=RX，5=GND 9-pin male D-type interface：2=RX，3=TX，5=GND

11. Electrostatic protection

    Human body discharge mode: ± 8 kV (air gap discharge)± 4 kV (contact discharge)

Routine

1. Rated power

   36W

2. Power Supply

   AC：100V~240V 50/60Hz DC：12V3A

3. Temperature

   0~＋50°C

4. Humidity

   20%~70%

5. Equipment height

   2U

6. Weight

   3.9kg

7. Size

   440 x 280 x 89mm（Without lug）
